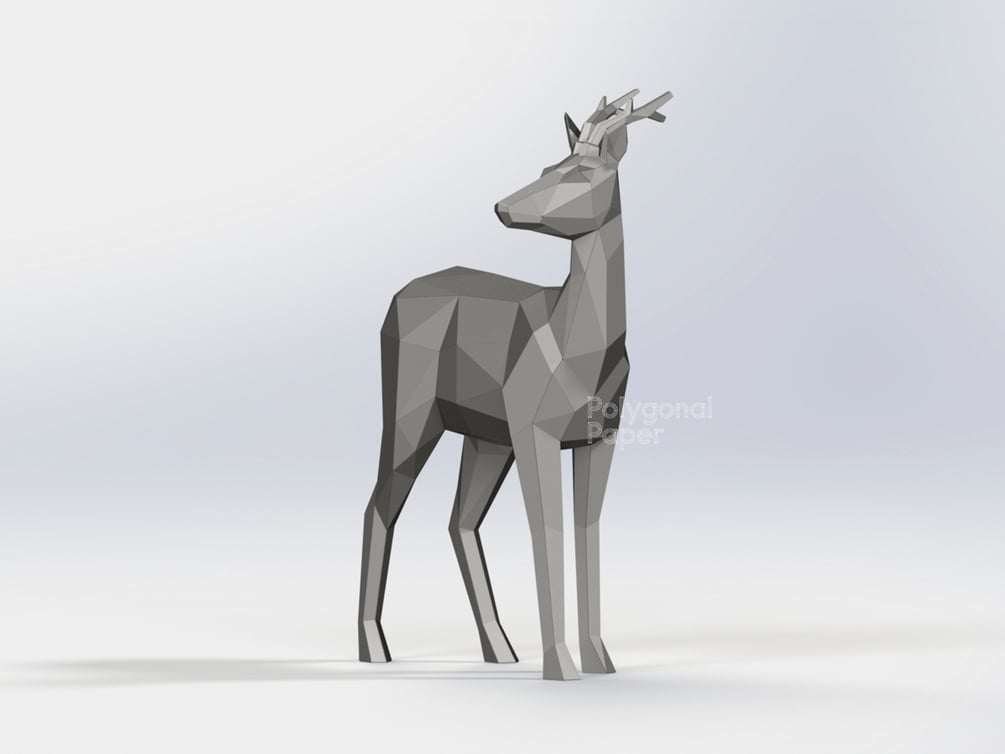

Roe Deer: Drawings for Laser Cutting and Welding Polygonal Low Poly Figure from Sheet Metal
Drawings for assembly of the Roe Deer from metal.
You will need one sheet of metal 1250 x 2500 mm and one sheet of metal 1250 x 650 mm.

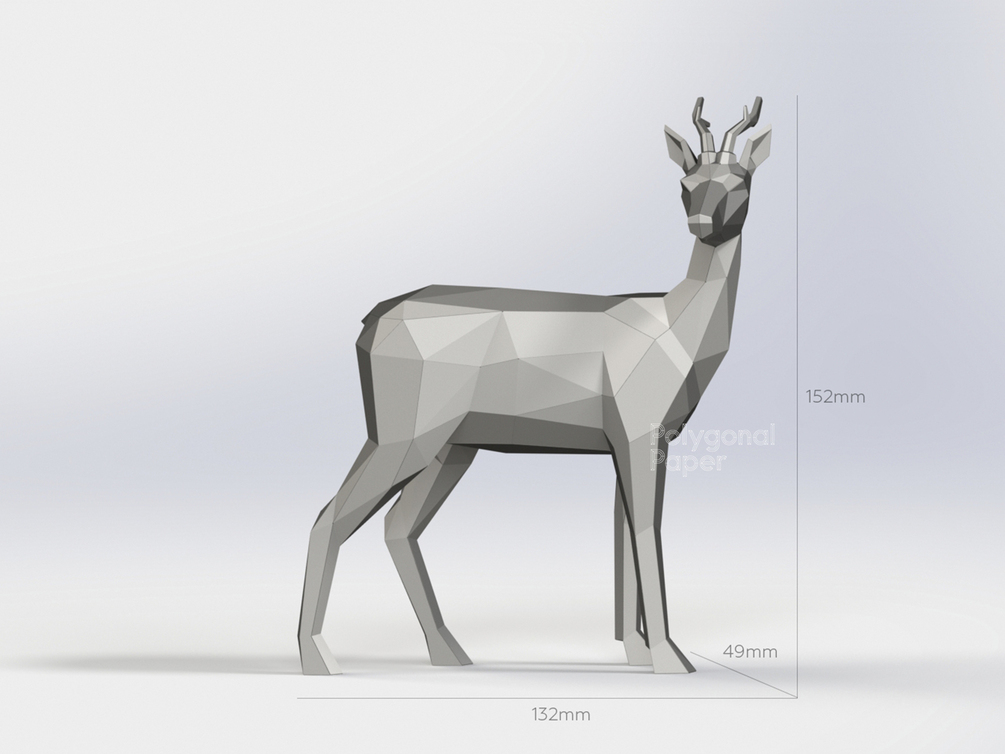

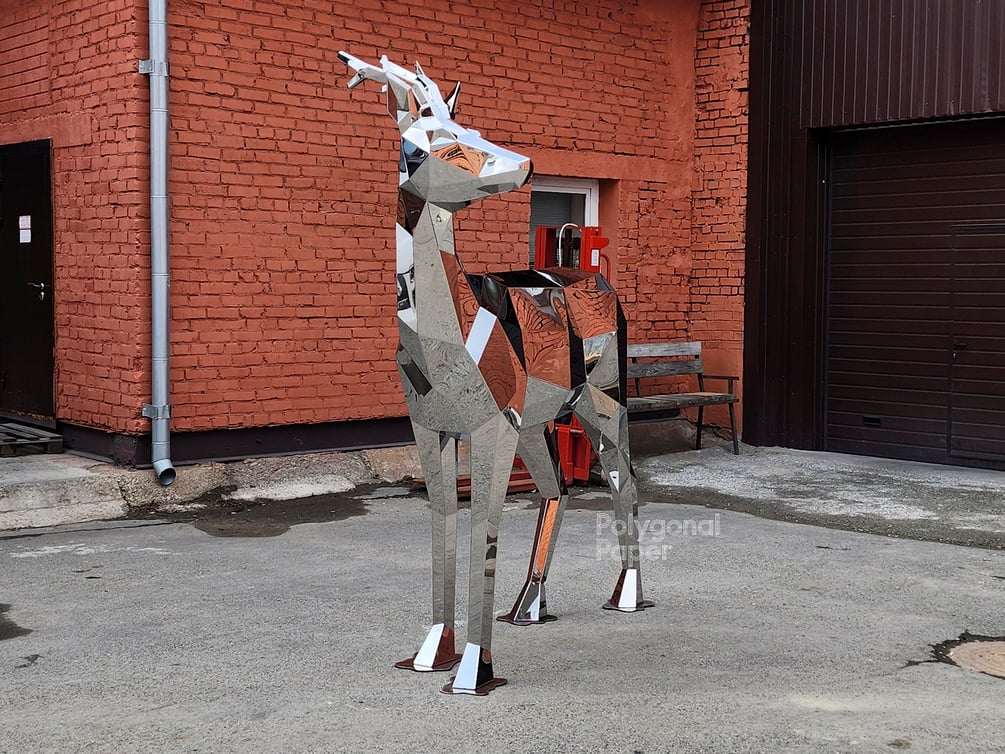

The final size of the model: 152 x 49 x 132 cm.

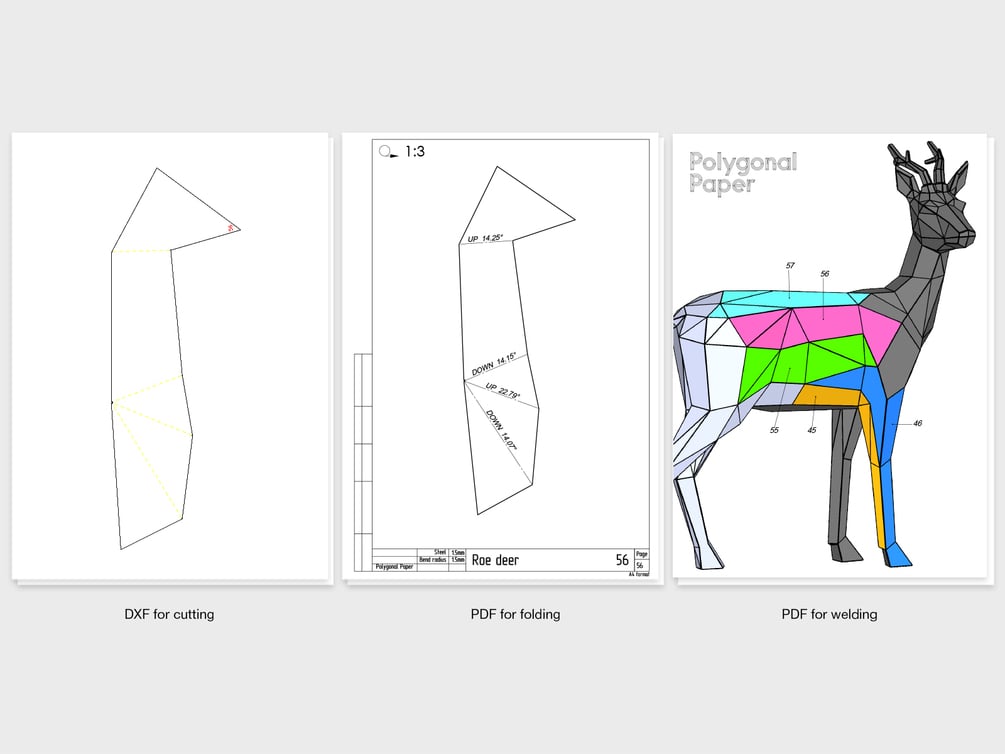

Files included:
- DXF file for laser cutting;
- PDF file showing bend angles;
- PDF welding instruction.
Features:
- Metal sheet 1.5 mm thick;
- Drawing on the front side of the assembled model;
- Small parts for easy operation using a sheet metal bending machine;
- Most of the welds are on the front side.
What to do:
- Cut pieces with laser;
- Engrave fold lines if you wish;
- Assign part numbers with a highlighter;
- Use a sheet bending machine;
- Weld parts;
- Grind welds;
- Design the surface as desired.
Designer: Rim Shamsin. Use of our intellectual property for profit is prohibited. All rights reserved. Please feel free to contact us info@polygonalpaper.com
When we designing low poly sculptures for assembly from metal, we take into account the thickness of the sheet metal (1.5 mm) and k-factor (coefficient of displacement during bending). The inner bend radius is 1.5 mm. We try to do all the welding on the outside so that the assembled model is as accurate as possible. We recommend using laser cutting and bending machine. But some of our customers cut and bend parts by hand - it takes much longer. Drawings are suitable for any style of work.
